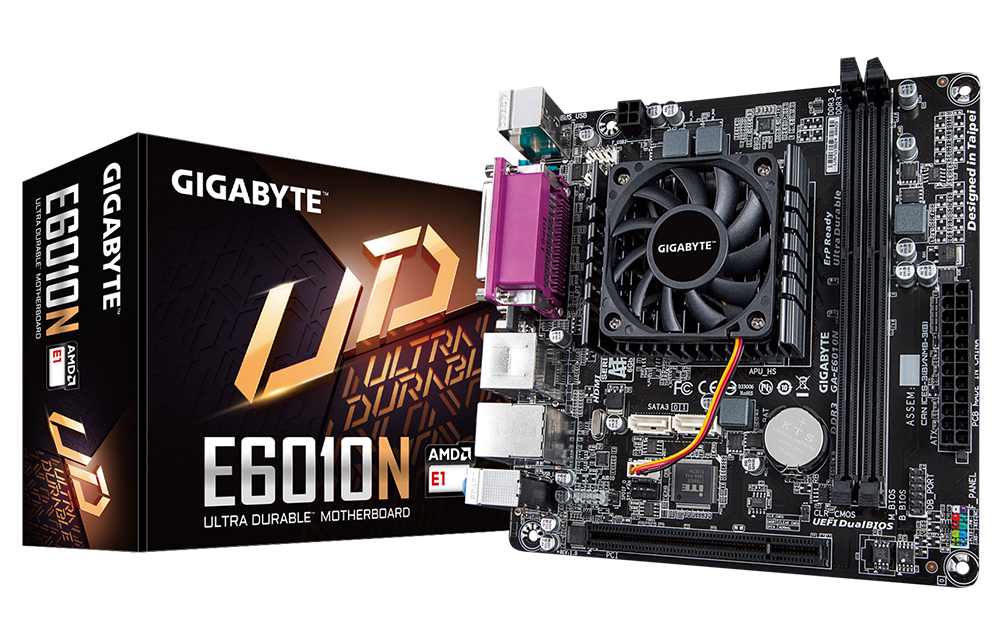

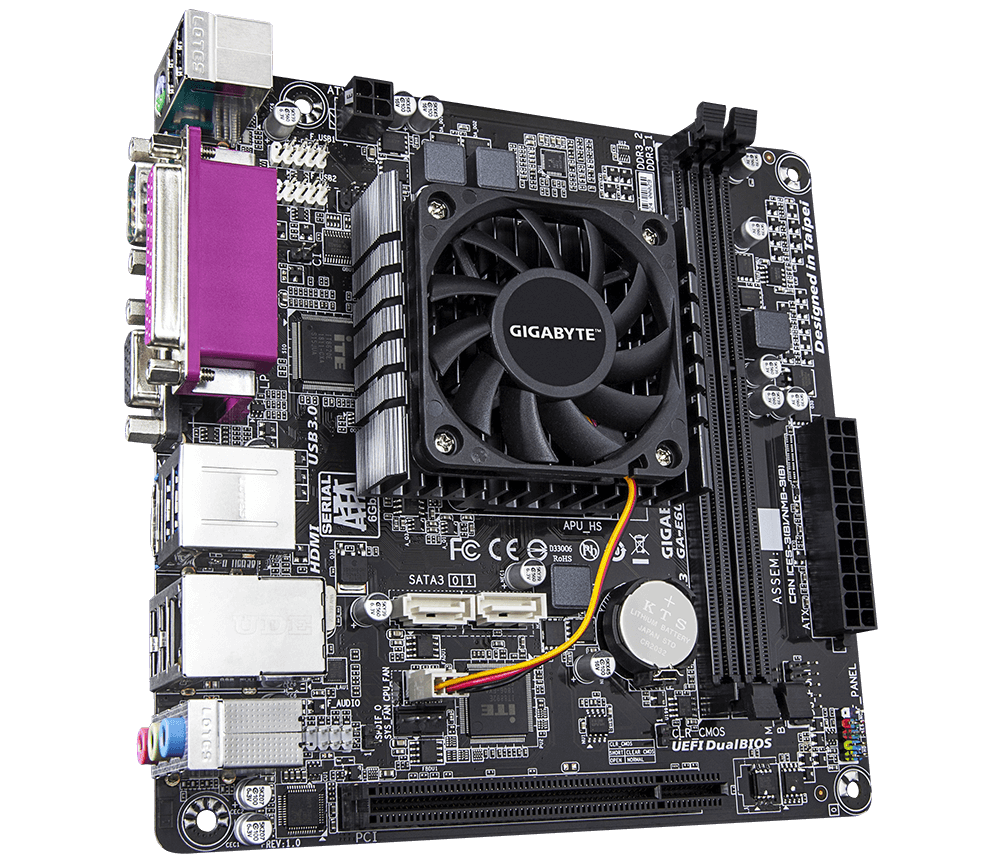

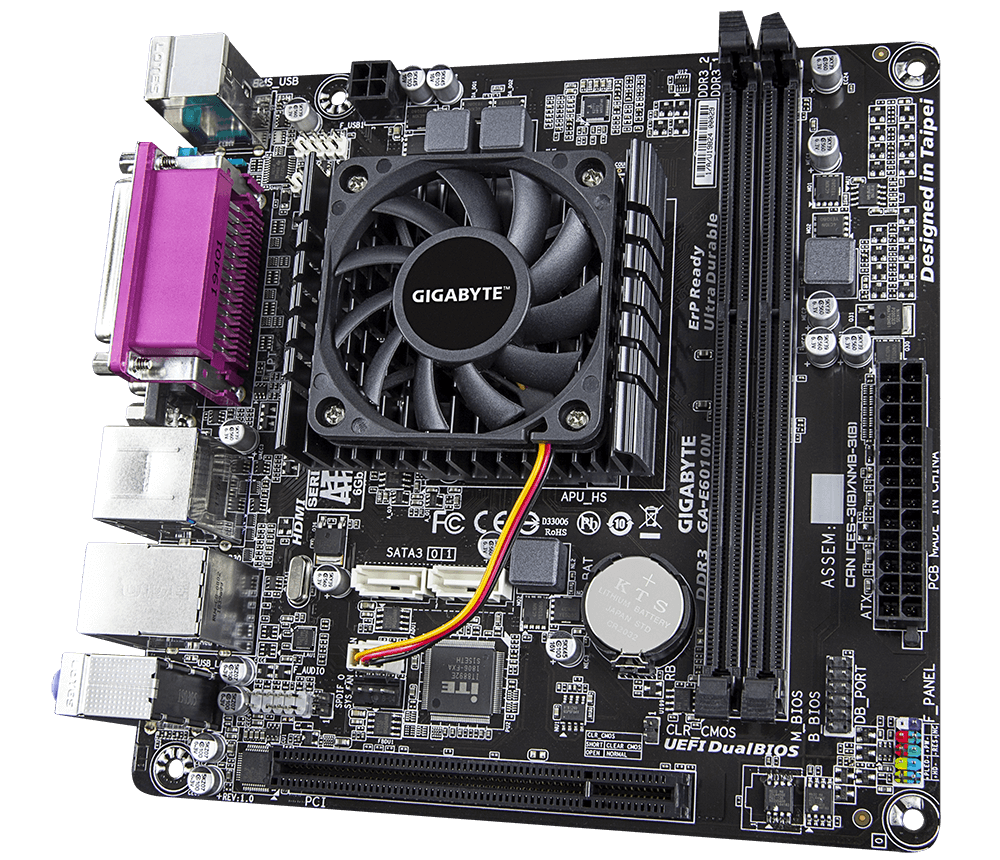

Motherboad + Procesador AMD gigabyte E6010N

Caracteristicas:

APU

Built in an AMD® E1-6010 (1.35 GHz) APU with Radeon™ R2 graphics SoC

* Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components.

2MB L2 cache

Memoria

2 x DDR3 DIMM sockets supporting up to 32 GB of system memory

Support for DDR3 1333/1066 MHz memory modules /  Gráficos Integrados

Integrated in the SoC:

1 x D-Sub port, supporting a maximum resolution of 1920x1200

1 x HDMI port, supporting a maximum resolution of 4096x2160

* Support for HDMI 1.4a version. / Maximum shared memory of 2 GB

Audio

Realtek® ALC887 codec / High Definition Audio / 2/4/5.1/7.1-channel

* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.

Support for S/PDIF Out

LAN

Realtek® GbE LAN chip (1000 Mbit/100 Mbit) / Puertos de Expansión

1 x PCI slot / Interfaz de Almacenamiento

Integrated in the SoC:

2 x SATA 6Gb/s connectors / USB

Integrated in the SoC:

2 x USB 3.1 Gen 1 ports on the back panel / 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Conectores Internos de E/S

1 x 24-pin ATX main power connector / 1 x 4-pin ATX 12V power connector

2 x SATA 6Gb/s connectors / 1 x APU fan header / 1 x system fan header

1 x front panel header / 1 x front panel audio header / 1 x S/PDIF Out header

2 x USB 2.0/1.1 headers / 1 x serial port header / 1 x chassis intrusion header / 1 x Clear CMOS jumper

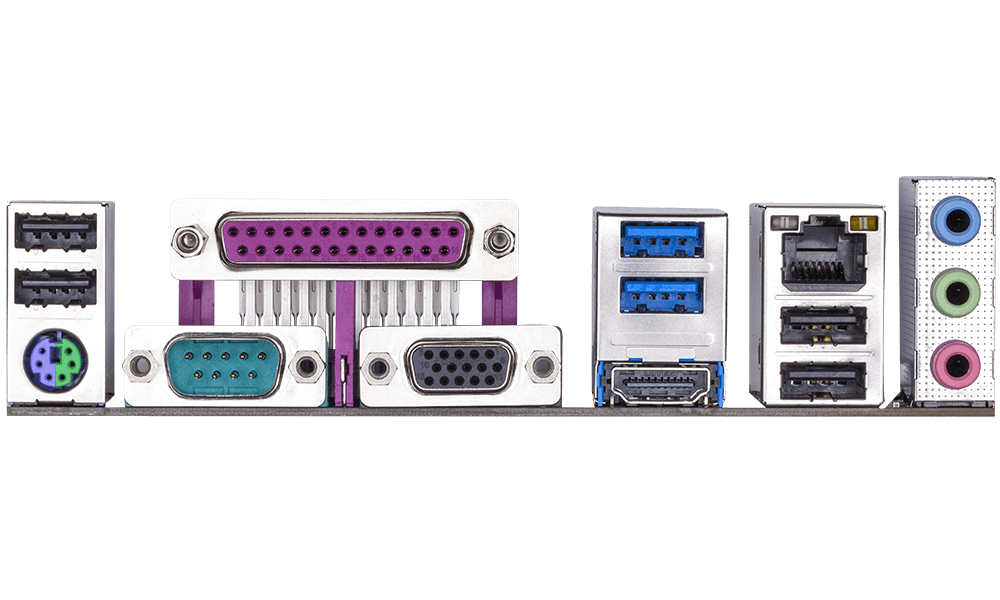

Conectores del Panel Trasero

1 x PS/2 keyboard/mouse port

1 x parallel port / 1 x serial port / 1 x D-Sub port / 1 x HDMI port / 2 x USB 3.1 Gen 1 ports / 4 x USB 2.0/1.1 ports / 1 x RJ-45 port / 3 x audio jacks

Diseño

Mini-ITX Form Factor; 17.0cm x 17.0cm
