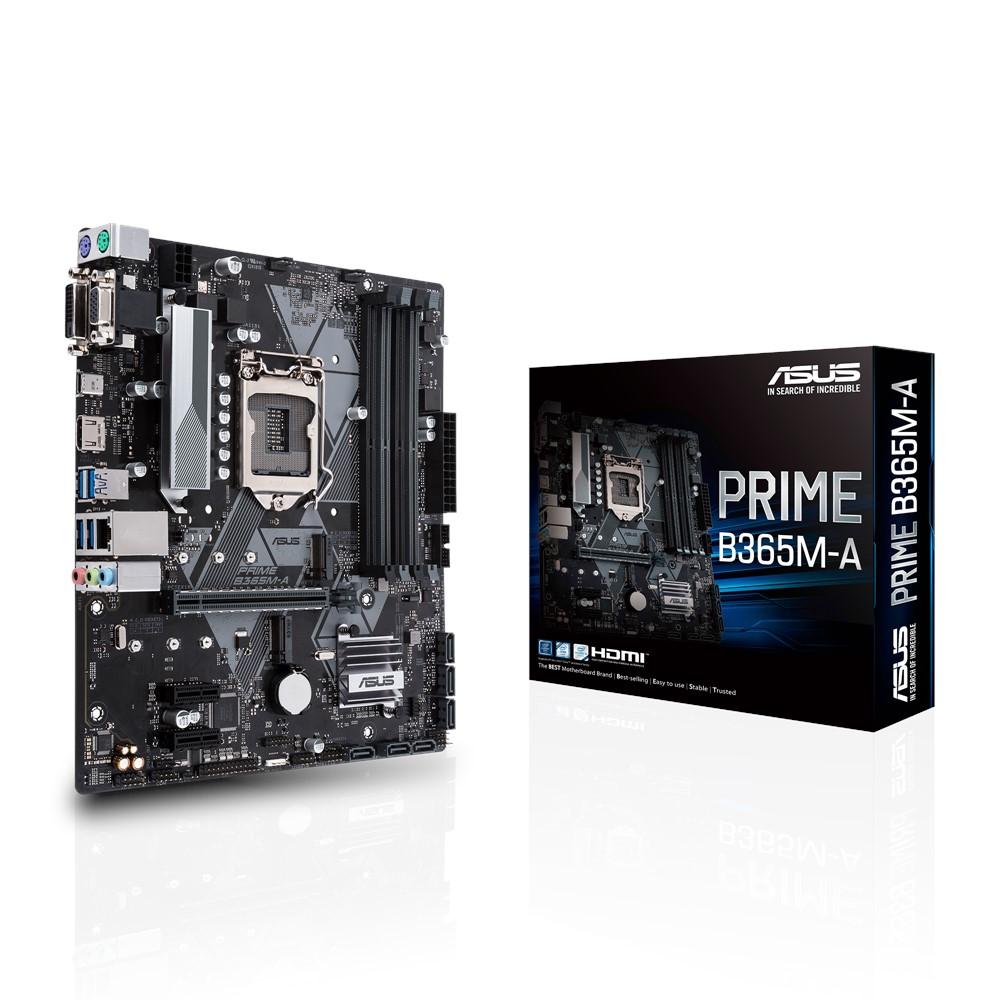

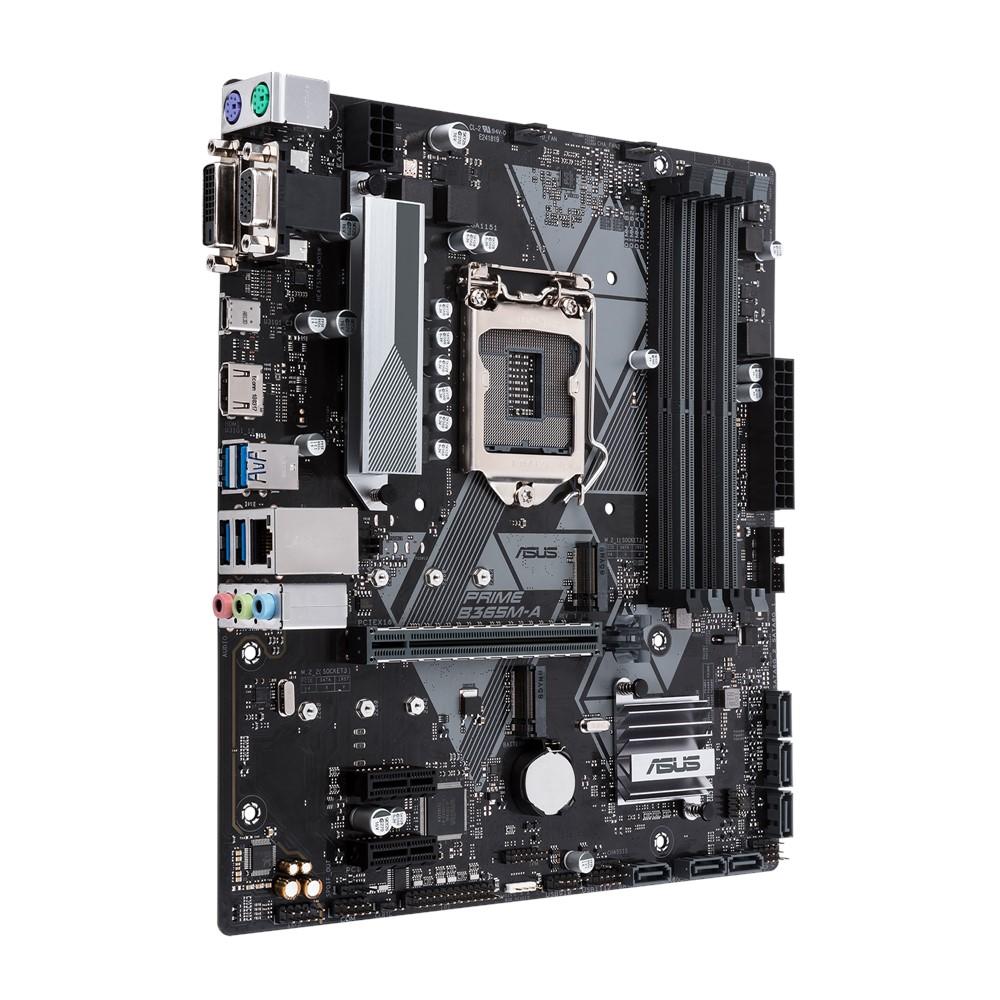

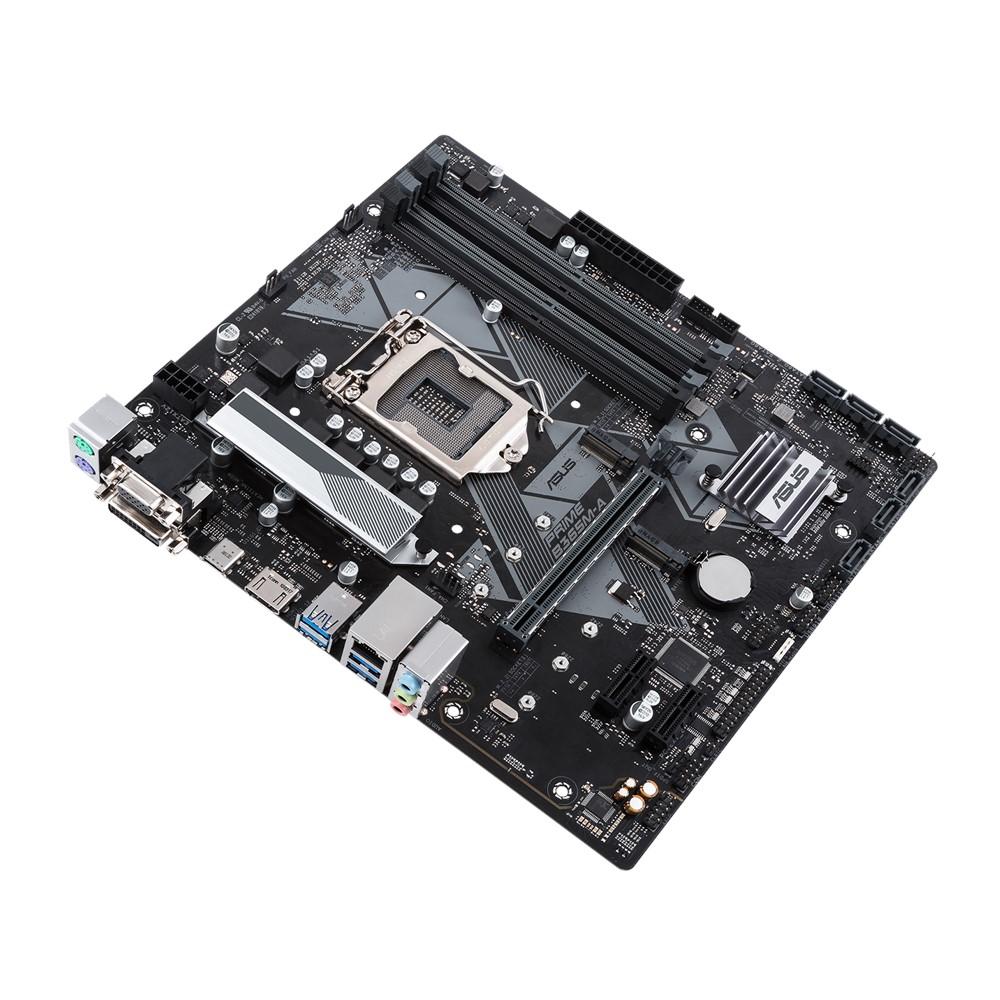

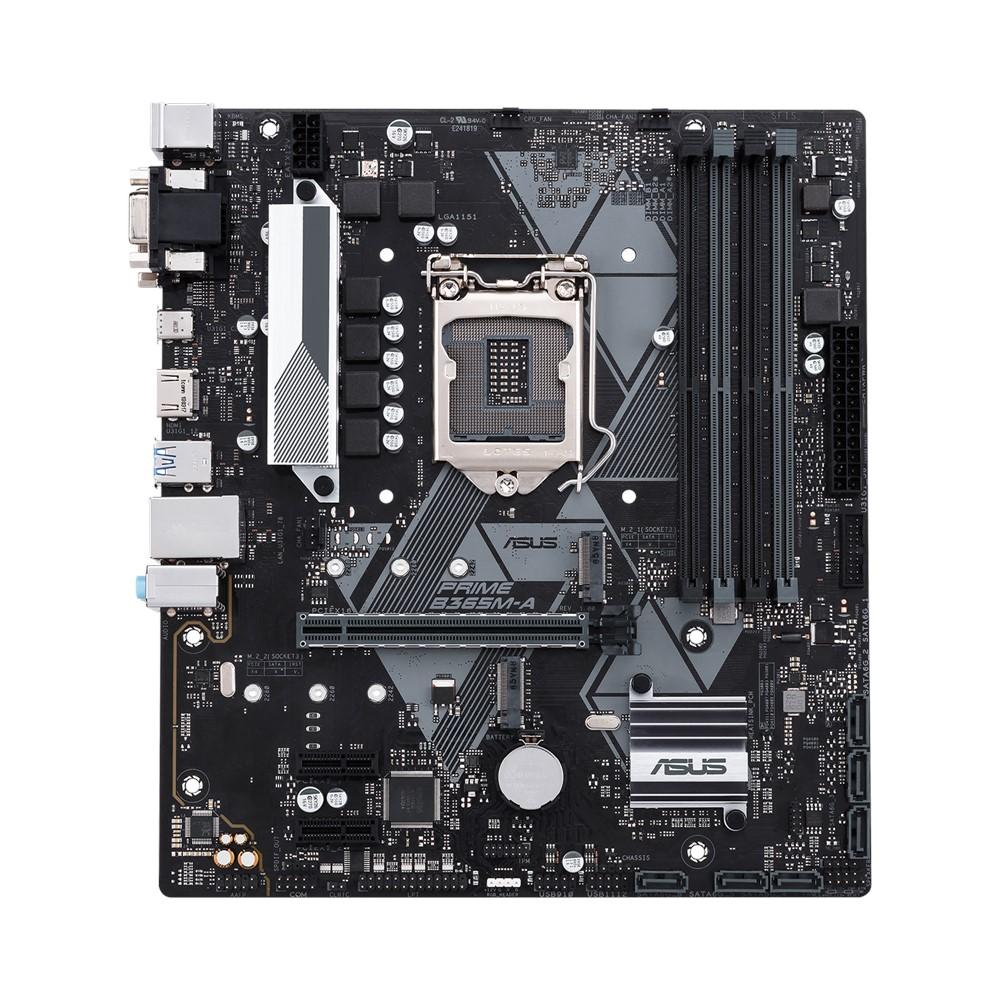

Motherboard Asus PRIME B365M-A

CARACTERISTICAS:

• CPU
  Intel® Socket 1151 for 9^th / 8^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
  Supports Intel® 14 nm CPU
  Supports Intel® Turbo Boost Technology 2.0
  * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  * Refer to www.asus.com for CPU support list

• Chipset
  Intel® B365
• Memory
  Intel® B365 Chipset
  4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  * The maximum memory frequency supported varies by processor
  ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
• Graphic
  Integrated Graphics Processor- Intel® HD Graphics support
  Multi-VGA output support : HDMI/DVI-D/D-Sub ports
  - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
  - Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
  - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
  Maximum shared memory of 1024 MB (for iGPU exclusively)
  Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
• Expansion Slots
  1 x PCIe 3.0 x16 (x16 mode)
  2 x PCIe 3.0/2.0 x1
• Storage
  Intel® B365 Chipset :
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
  6 x SATA 6Gb/s port(s), gray
  Support Raid 0, 1, 5, 10
  Intel® Rapid Storage Technology supports
  Intel® Optane™ Memory Ready
• LAN
  Realtek® RTL8111H, 1 x Gigabit LAN
  ASUS LAN Guard
• Audio
  Realtek® ALC887 8-Channel High Definition Audio CODEC
  - Supports : Jack-detection, Front Panel Jack-retasking
  Audio Feature :
  - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
  - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
  - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
  - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  Intel® B365 Chipset :

  Intel® B365 Chipset :
  7 x USB 3.1 Gen 1 up to 5Gbps port(s) (5 at back panel, , 4 x Type-A+1 x Type-C, 2 at mid-board)
  Intel® B365 Chipset :
  4 x USB 2.0/1.1 port(s) (4 at mid-board)
• Special Features
  ASUS 5X Protection III :
  - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
  - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
  - ASUS Overvoltage Protection: World-class circuit-protecting power design
  - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
  - ASUS DIGI+ VRM: Premium components provide better power efficiency
  ASUS OptiMem：
  - Optimem (Improved DDR4 stability)
  ASUS EPU :
  - EPU
  ASUS Exclusive Features :
  - AI Suite 3
  - Ai Charger
  - PC Cleaner
  ASUS Quiet Thermal Solution :
  - Stylish Fanless Design Heat-sink solution
  - ASUS Fan Xpert 2+
  ASUS EZ DIY :
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
  ASUS Q-Design :
  - ASUS Q-DIMM
  M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

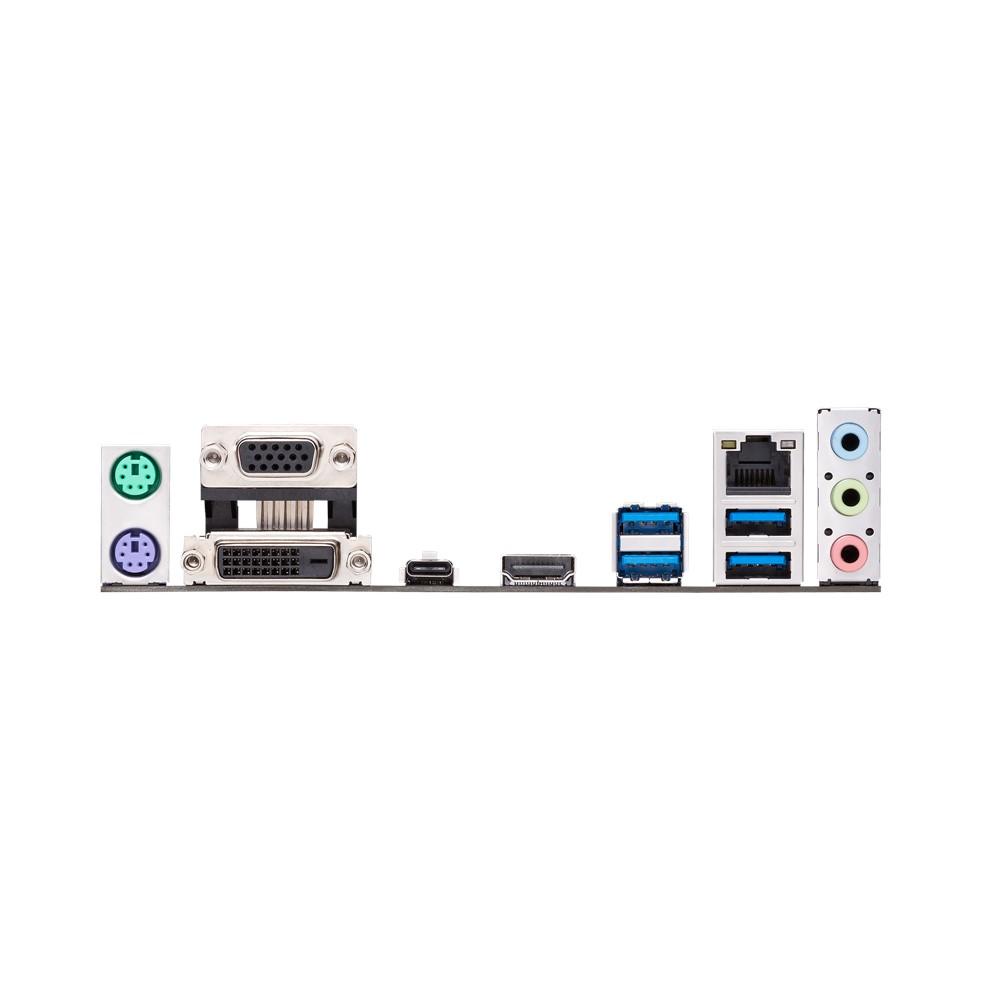

• Back I/O Ports
  1 x PS/2 keyboard (purple)
  1 x PS/2 mouse (green)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  1 x USB 3.1 Gen 1 USB Type-C^TM up to 5Gbps
  4 x USB 3.1 Gen 1 Type-A
  1 x 8-channel Audio I/O
• Internal I/O Ports
  1 x Aura RGB Strip Header
  1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
  1 x TPM header
  1 x LPT header
  1 x COM port(s) connector(s)
  6 x SATA 6Gb/s connector(s)
  1 x CPU Fan connector(s)
  2 x Chassis Fan connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin EATX 12V Power connectors
  1 x Front panel audio connector(s) (AAFP)
  1 x Clear CMOS jumper(s)
  1 x System panel connector
  1 x Chassis intrusion header
  1 x Speaker connector
• Accessories
  User's manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  2 x M.2 screws
  1 x Supporting DVD
• BIOS
  128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial
  Presence Detect) memory information
• Manageability
  WOL by PME, PXE
• Operating System
  Windows® 10 64-bit
• Form Factor
  mATX Form Factor
  9.6 inch x 8.6 inch ( 24.4 cm x 21.8 cm )
