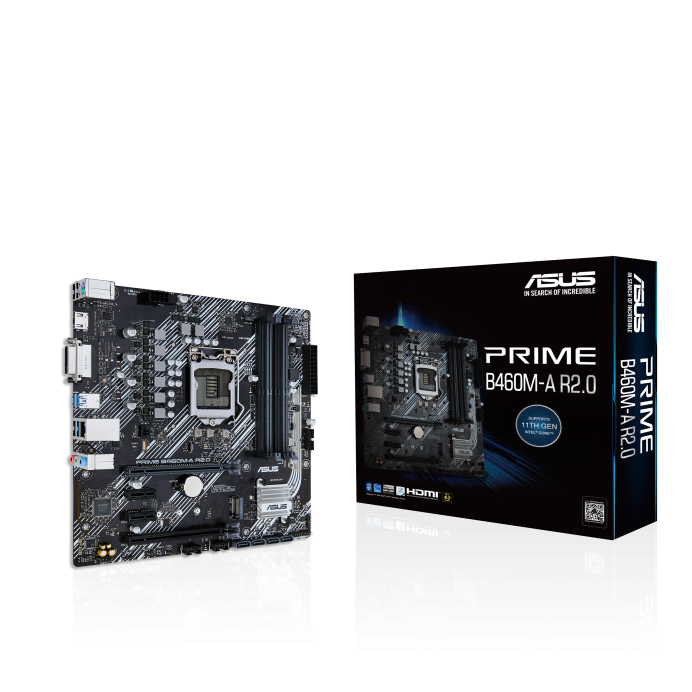

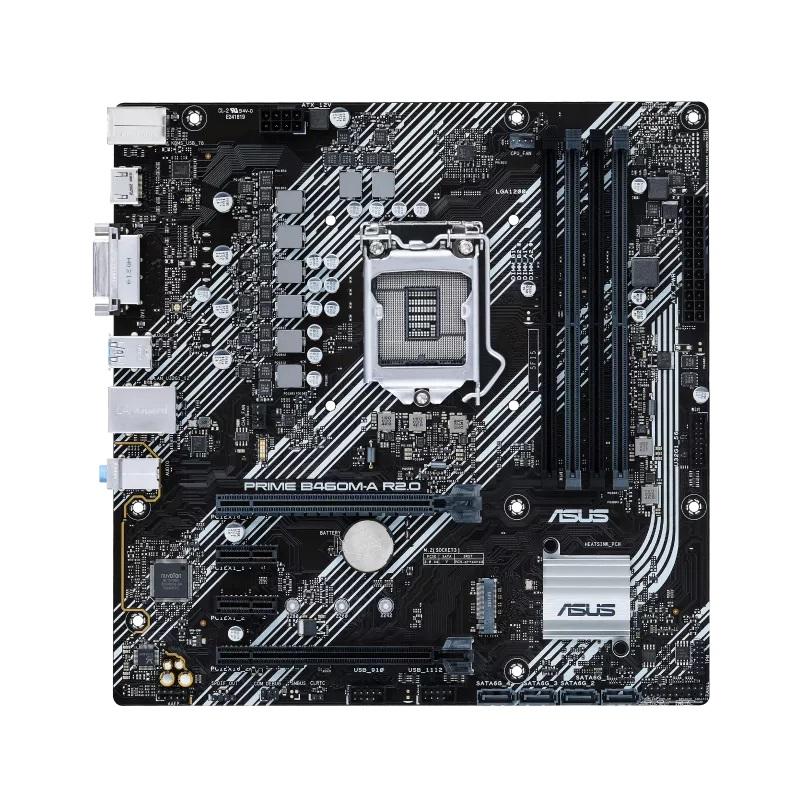

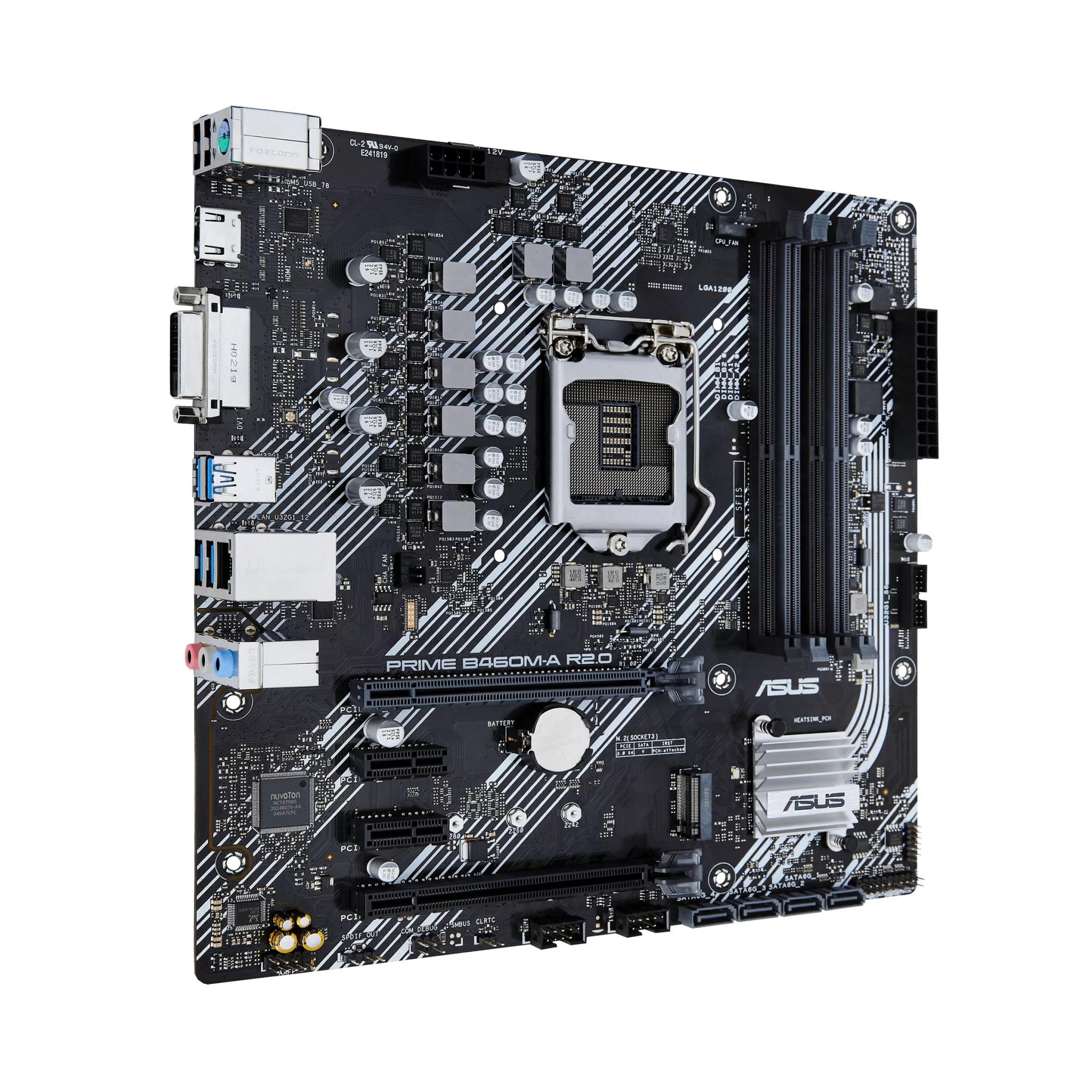

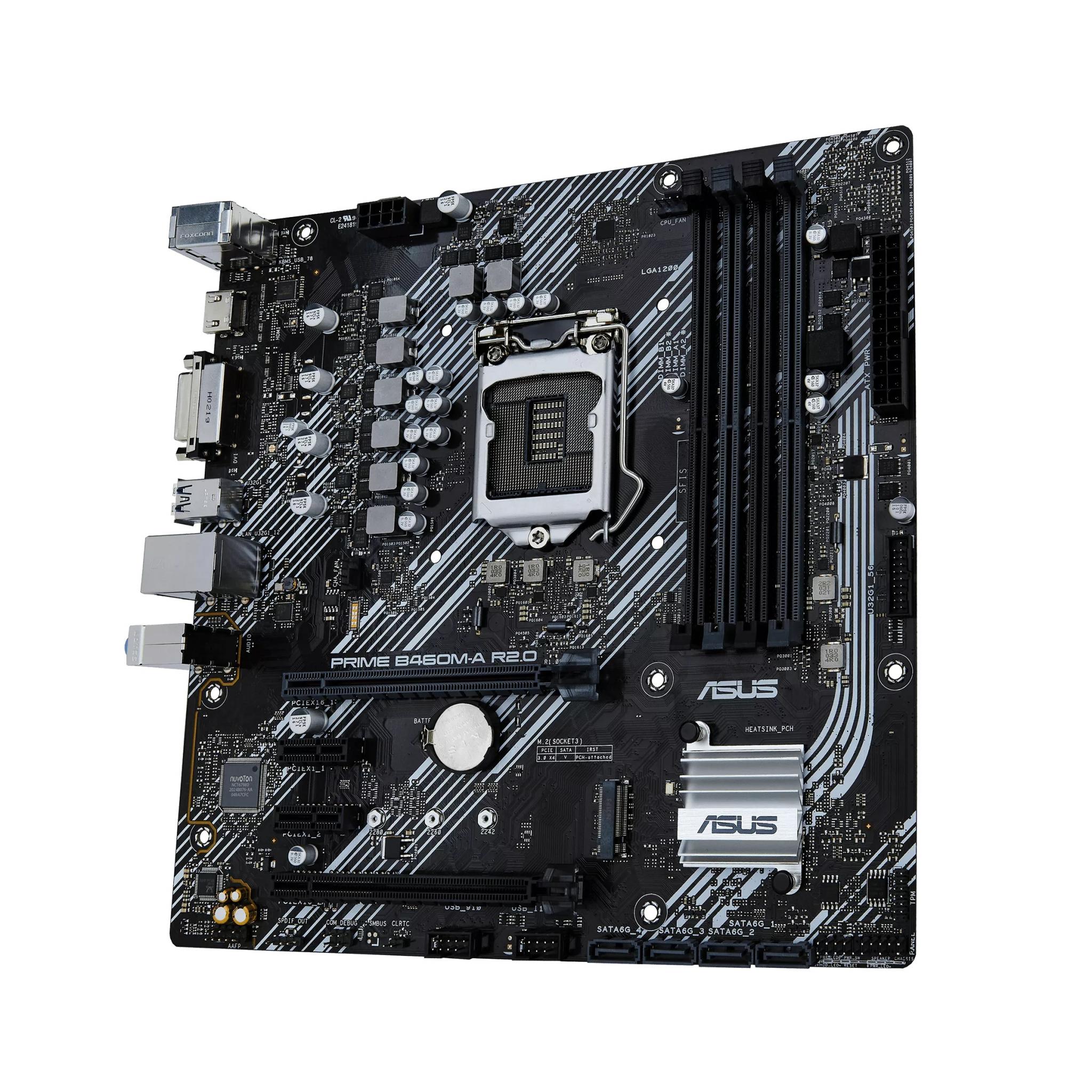

Motherboard Asus Prime B460M-A R2.0 (socket 1200)

CARACTERISTICAS:

• CPU

  Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors


  Supports Intel® 14 nm CPU

  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

  * Refer to www.asus.com for CPU support list.

  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

  Chipset

  Intel® H470 Chipset

  Memoria

  Memory Channels: 4DDR4 (Dual channel)
  Max Memory Size: 128GB


  4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory*

  Dual Channel Memory Architecture

  Supports Intel® Extreme Memory Profile (XMP)

  OptiMem

  * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

  * 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.

  * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

  Gráficos

  1 x HDMI™ 2.0***


  * Graphics specifications may vary between CPU types.

  ** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

  Ranuras de expansión

  1 x PCIe 4.0/3.0 x16 + 1 x PCIe 3.0 x16 (max. x4)


  Intel® 11th & 10th Gen Processors*

  1 x PCIe 4.0/3.0 x16 slot

  - Intel®11th Gen processors support PCIe 4.0 x16 mode

  - Intel®10th Gen processors support PCIe 3.0 x16 mode

  Intel® H470 Chipset

  1 x PCIe 3.0 x16 slot (supports x4 mode)

  2 x PCIe 3.0 x1 slots

  Almacenamiento

  Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel® H470 Chipset

  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

  4 x SATA 6Gb/s ports

  Intel® Rapid Storage Technology supports Raid 0,1,5,10

  Intel® Optane™ Memory Ready

  Ethernet

  1 x Intel® 1Gb Ethernet
  ASUS LANGuard

  USB

  Rear USB:Total 6 ports


  4 x USB 3.2 Gen 1 ports (4 x Type-A)

  2 x USB 2.0 ports (2 x Type-A)



  Front USB:Front USB Port ( Total 6 )


  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Audio

  ALC887/897


  Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*

  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  - Supports up to 24-Bit/192 kHz playback"

  Audio Features

  - Audio Shielding

  - LED-illuminated audio trace path design

  - Premium Japanese audio capacitors

  - Dedicated audio PCB layers

  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

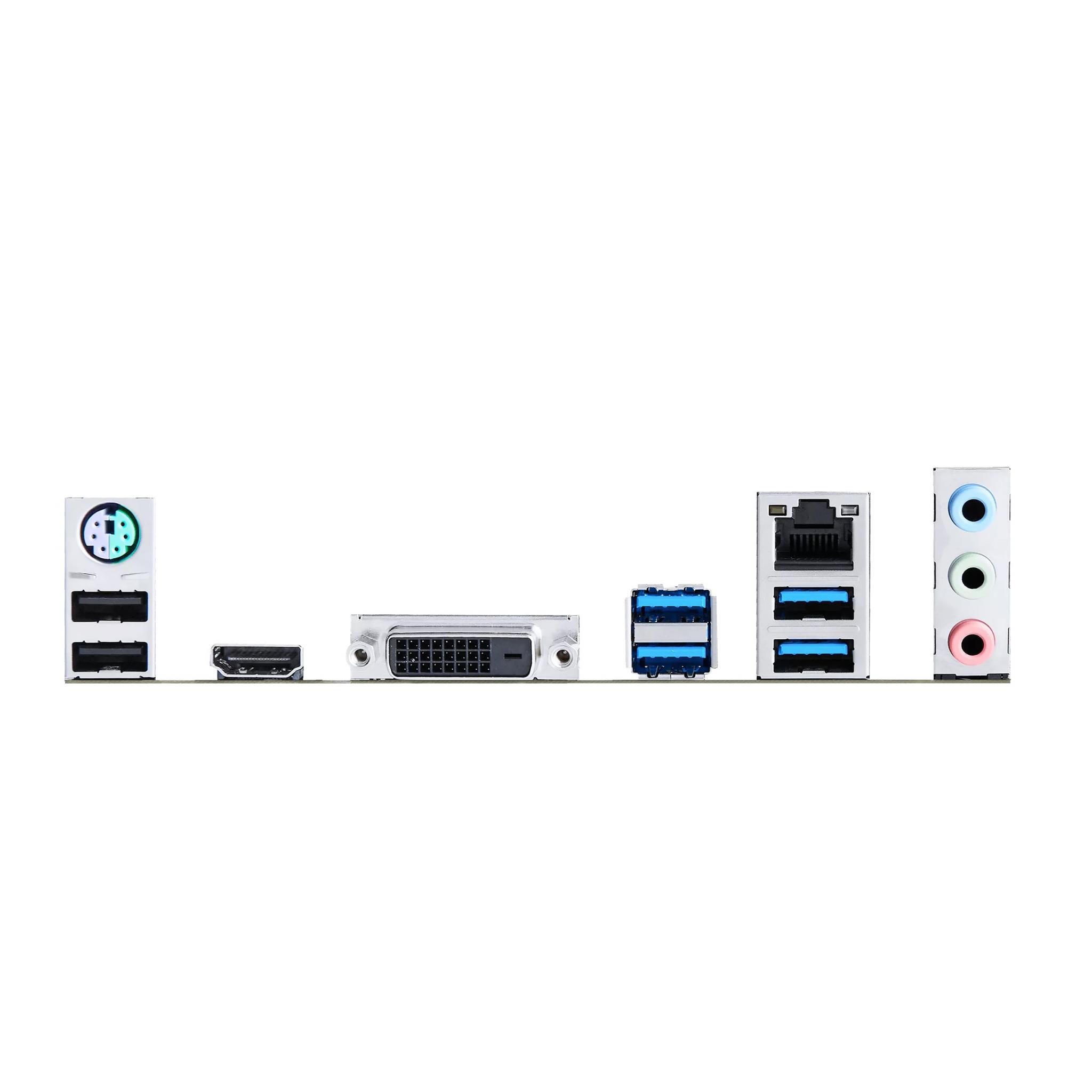

  Puertos E/S traseros

  4 x USB 3.2 Gen 1 ports (4 x Type-A)

  2 x USB 2.0 ports (2 x Type-A)

  1 x DVI-D port

  1 x HDMI port

  1 x Intel® I219V 1Gb Ethernet

  3 x Audio jacks

  1 x PS/2 Keyboard/Mouse combo port

  Puertos internos

  Fan and cooling related

  1 x 4-pin CPU Fan header

  1 x 4-pin Chassis Fan header

  Power related

  1 x 24-pin Main Power connector

  1 x 8-pin +12V Power connector

  Storage related

  1 x M.2 slot (Key M)

  4 x SATA 6Gb/s ports

  USB

  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

  2 x USB 2.0 headers support additional 4 USB 2.0 ports

  Miscellaneous

  1 x Clear CMOS header

  1 x Front Panel Audio header (AAFP)

  1 x S/PDIF Out header

  1 x SPI TPM header (14-1pin)

  1 x 20-3 pin System Panel header with Chassis intrude function




  UEFI BIOS

  ASUS EZ DIY

  - ASUS CrashFree BIOS 3

  - ASUS EZ Flash 3

  - ASUS UEFI BIOS EZ Mode

  BIOS

  192 (128+64) Mb Flash ROM, UEFI AMI BIOS

  Manejabilidad

  WOL by PME, PXE

  Accesorios

  Cables

  2 x SATA 6Gb/s cables

  Miscellaneous

  1 x I/O Shield

  1 x M.2 SSD screw package

  Installation Media

  1 x Support DVD

  Documentation

  1 x User manual

  Factor de forma

  microATX
  24.4cm x 24.4cm
