Motherboard Gigabyte H610M K V2 DDR5 1700

CARACTERISTICAS:

• • CPU
    1. LGA1700 socket: Support for 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
    2. L3 cache varies with CPU

    * Please refer to "CPU Support List" for more information.
  • Chipset
    1. Intel^® H610 Express Chipset
  • Memory
    1. Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    3. Dual channel memory architecture
    4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    6. Support for Extreme Memory Profile (XMP) memory modules

    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel^® HD Graphics support:

    1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.1 version and HDCP 2.3.
       ** Support native HDMI 2.1 TMDS compatible ports

    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek^® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
       * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
  • LAN
    1. Intel^® GbE LAN chip (1 Gbps/100 Mbps)
  • Expansion Slots
    1. 1 x PCI Express x16 slot, running at x16
       * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
       (The PCI Express x16 slot conforms to PCI Express 4.0 standard.)
    2. 1 x PCI Express x1 slot
       (The PCI Express x1 slot conforms to PCI Express 3.0 standard.)
  • Storage Interface
    Chipset:

    1. 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
  • USB
    Chipset:

    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 4 x USB 2.0/1.1 ports on the back panel

    Chipset+USB 2.0 Hub:

    1. 4 x USB 2.0/1.1 ports available through the internal USB headers
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x M.2 Socket 3 connector
    4. 4 x SATA 6Gb/s connectors
    5. 1 x CPU fan header
    6. 2 x system fan headers
    7. 1 x RGB LED strip header
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 2 x USB 2.0/1.1 headers
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper

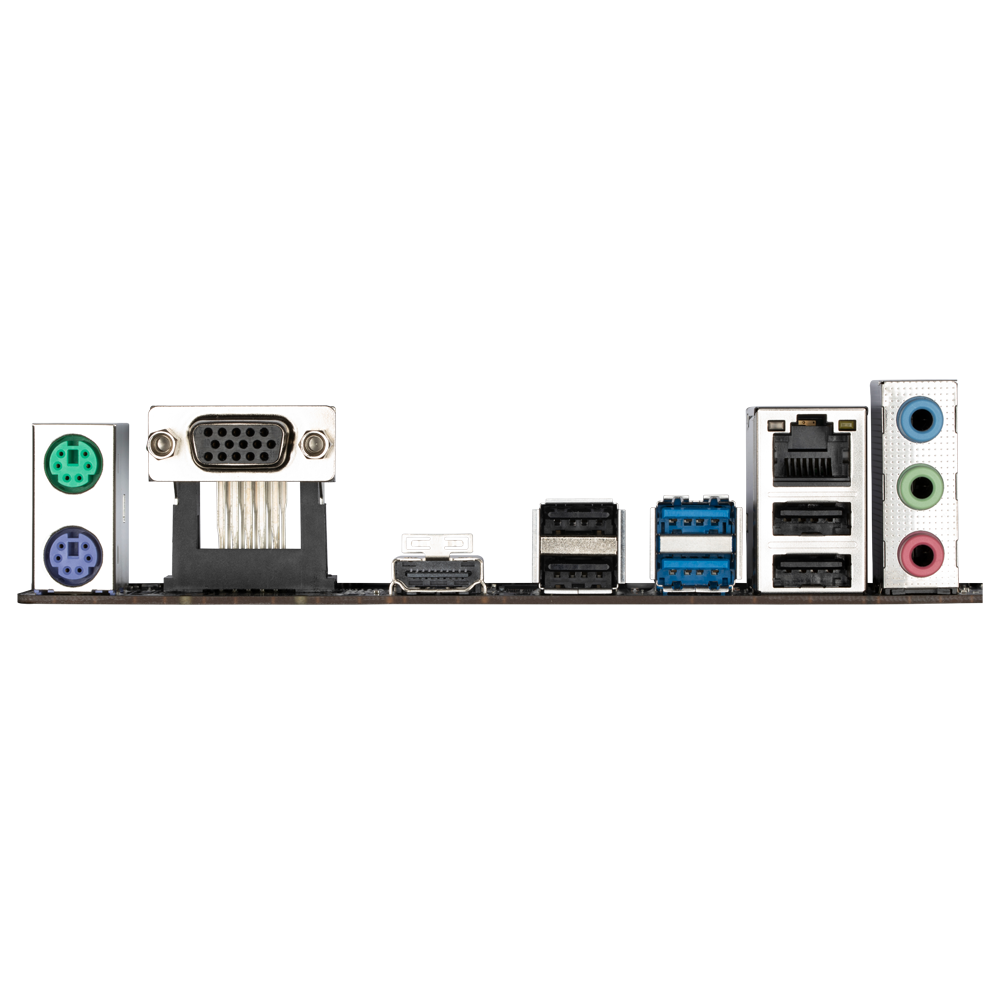

  • Back Panel Connectors
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x HDMI 2.0 port
    5. 2 x USB 3.2 Gen 1 ports
    6. 4 x USB 2.0/1.1 ports
    7. 1 x RJ-45 port
    8. 3 x audio jacks
  • I/O Controller
    1. iTE^® I/O Controller Chip
  • Form Factor
    1. Micro ATX Form Factor; 23.0cm x 21.5cm
