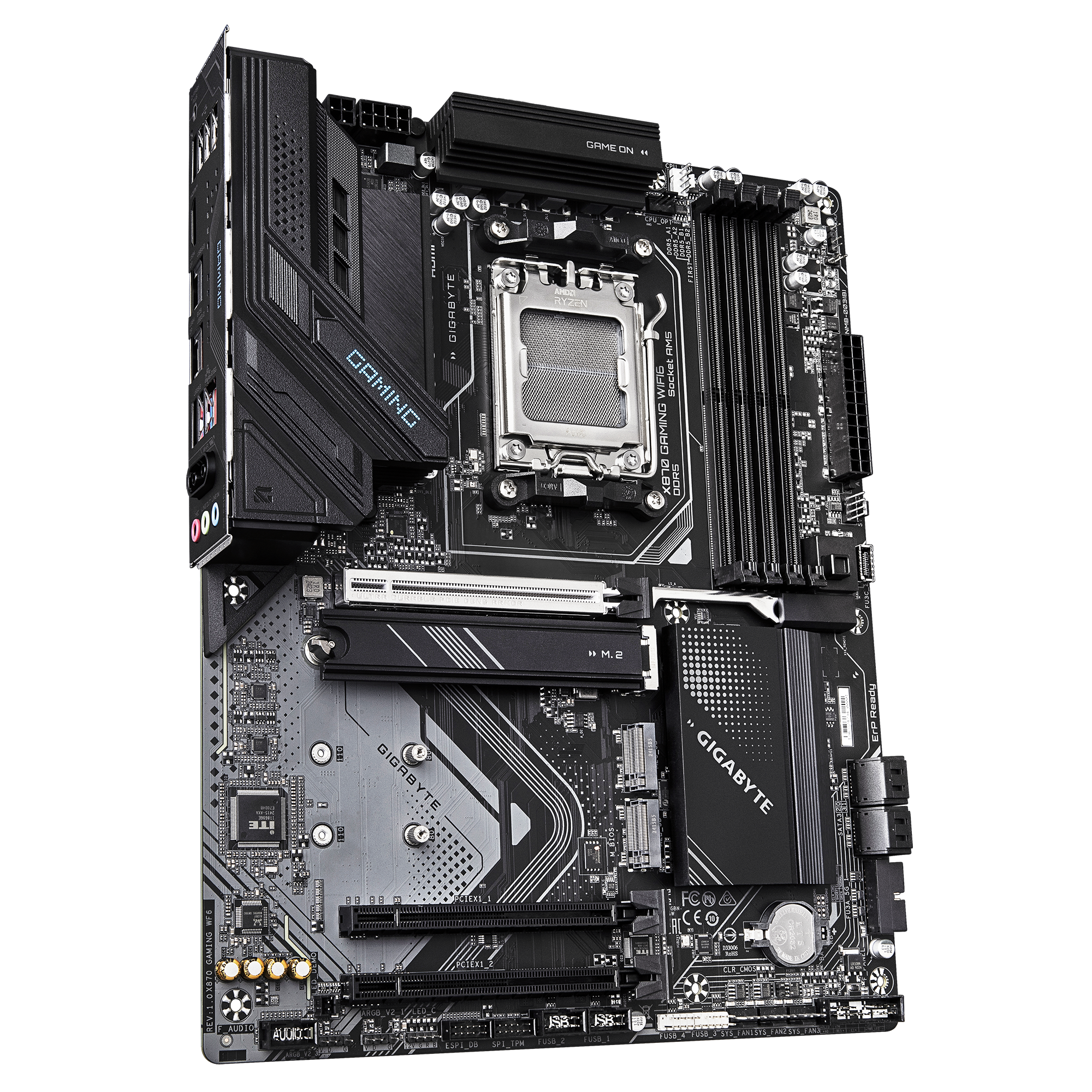

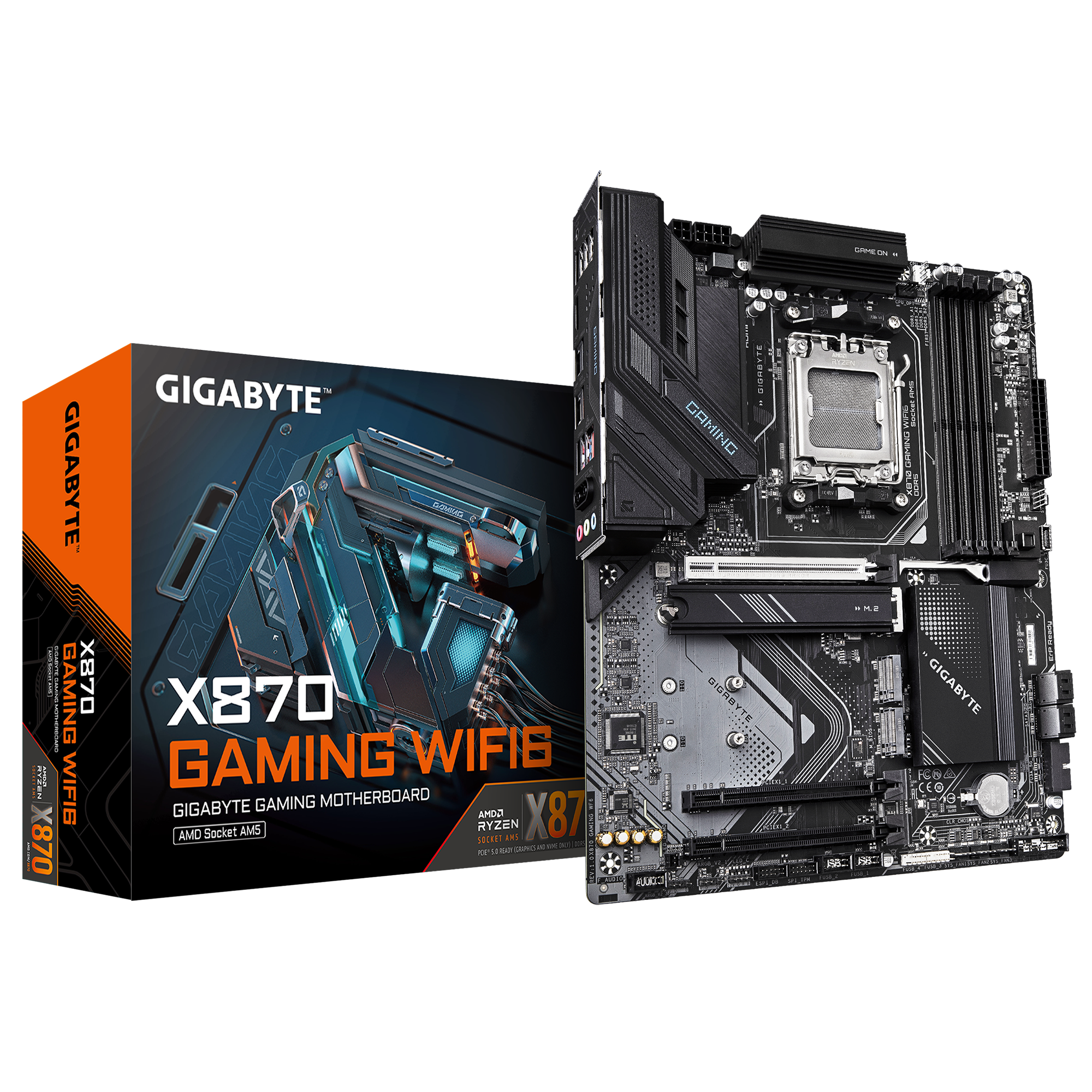

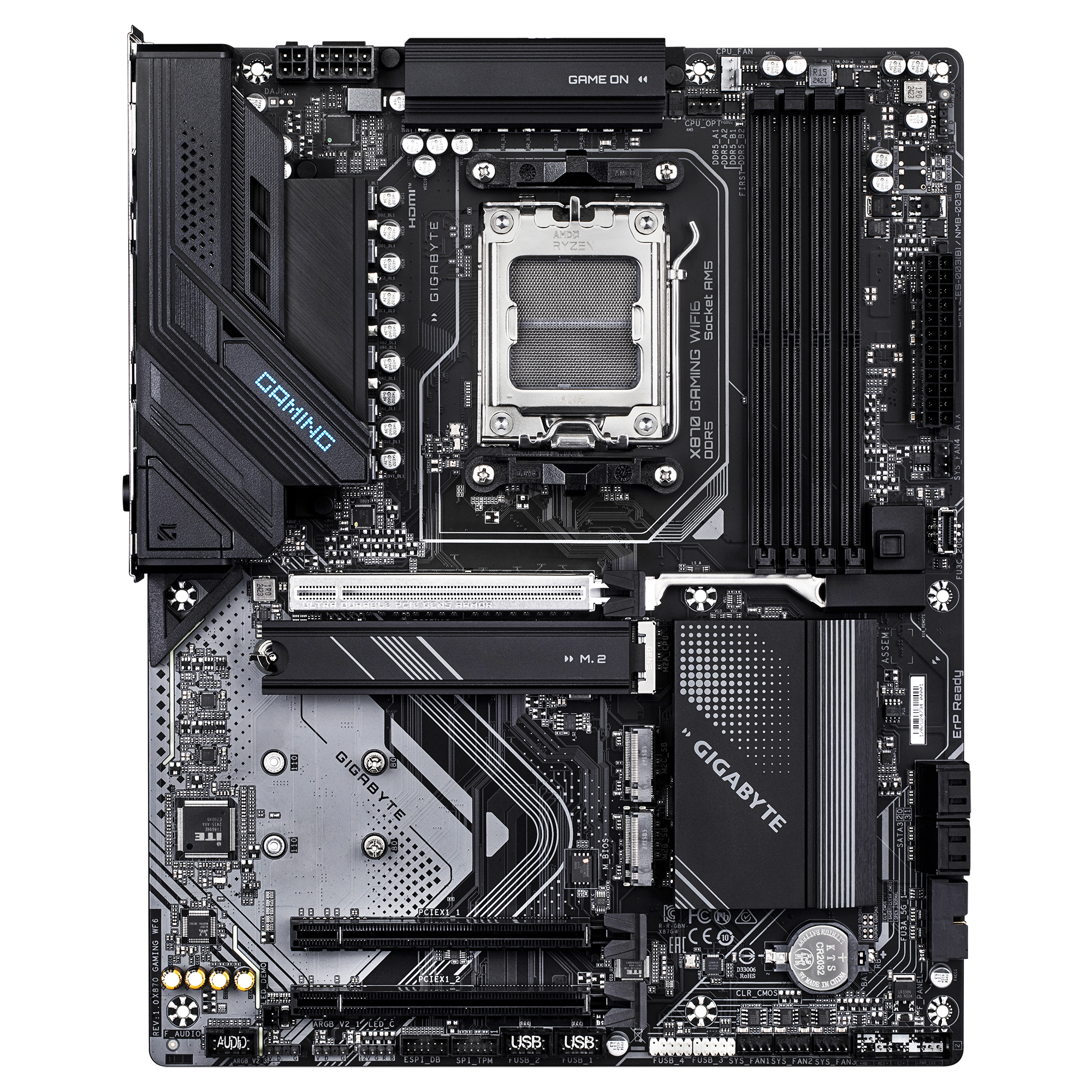

Motherboard Gigabyte X870 Gaming WIFI6

Caracteristicas:

• • AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors*
    * Refer to https://www.asus.com/support/download-center/ for CPU support list.
    Chipset

    AMD X870 Chipset
    Memory

    4 x DIMM slots, max. 256GB, DDR5
    Supports up to 8000+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors
    ECC and Non-ECC, Un-buffered DIMM*
    Dual channel memory architecture
    Supports AMD Extended Profiles for Overclocking (EXPO^™)
    ASUS Enhanced Memory Profile (AEMP)
    * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
    Graphics

    1 x HDMI^™ port**
    2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports 4K@60Hz as specified in HDMI 2.1.
    *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
    *** VGA resolution support depends on processors' or graphic cards' resolution.
    Expansion Slots

    AMD Ryzen^™ 9000 & 7000 Series Desktop Processors*
    1 x PCIe 5.0 x16 slot (supports x16 mode)
    AMD Ryzen^™ 8000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
    AMD X870 Chipset
    3 x PCIe 4.0 x16 slots (support x1 mode)***
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
    ** Specifications vary by CPU types.
    *** PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
    *** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
    Storage

    Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
    AMD Ryzen^™ 9000 & 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    AMD Ryzen^™ 8000 Series Desktop Processors
    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    AMD X870 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)*
    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**
    M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)***
    2 x SATA 6Gb/s ports***
    * PCIEX16(G4)_1 shares bandwidth with M.2_2. PCIEX16(G4)_1 will be disabled when M.2_2 runs.
    ** PCIEX16(G4)_2 and PCIEX16(G4)_3 share bandwidth with M.2_3. PCIEX16(G4)_2 and PCIEX16(G4)_3 will be disabled when M.2_3 runs.
    *** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
    AMD RAIDXpert2 Technology
    Ryzen^™ 9000 Series Processors: RAID 0/1/5/10
    Ryzen^™ 8000 Series Processors: RAID 0/1
    Ryzen^™ 7000 Series Processors: RAID 0/1/10
    Ethernet

    1 x Realtek 2.5Gb Ethernet
    ASUS LANGuard
    Wireless & Bluetooth

    Wi-Fi 7*
    2x2 Wi-Fi 7 (802.11be)
    Supports 2.4/5/6GHz frequency band**
    Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
    Bluetooth^® v5.4***
    *Wi-Fi features may vary depending on the operating system
    For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
    ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
    *** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
    USB

    Rear USB (Total 10 ports)
    2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
    1 x USB 10Gbps port (1 x Type-A)
    3 x USB 5Gbps ports (3 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 10Gbps connector (supports USB Type-C^®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    * USB Type-C^® power delivery output: max. 5V/3A
    Audio

    Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

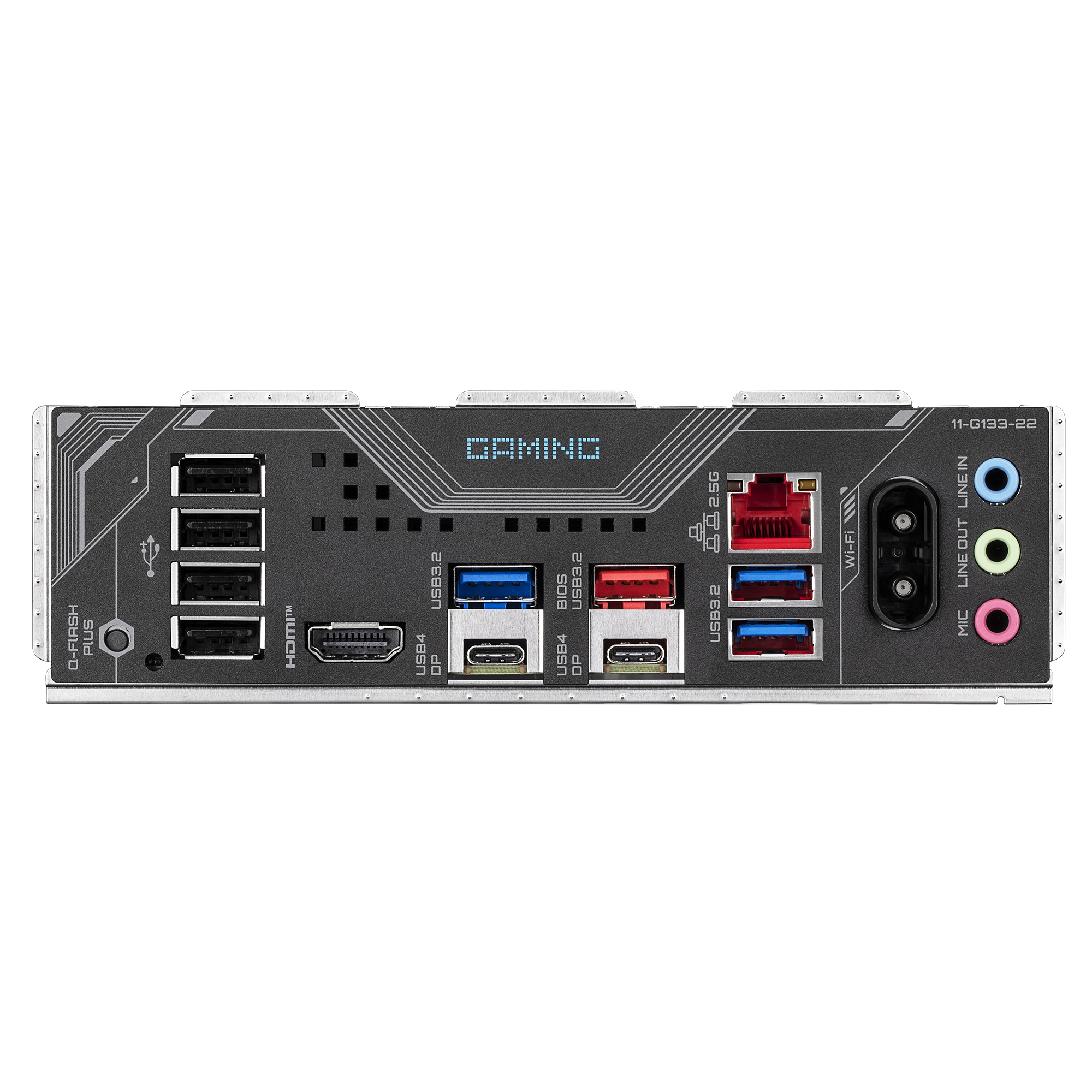

    Back Panel I/O Ports

    2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)
    1 x USB 10Gbps port (1 x Type-A)
    3 x USB 5Gbps ports (3 x Type-A)
    4 x USB 2.0 ports (4 x Type-A)
    1 x HDMI^™ port
    1 x Wi-Fi module
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x BIOS FlashBack^™ button
    Internal I/O Connectors

    Fan and Cooling Related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    4 x 4-pin Chassis Fan headers
    Power Related
    1 x 24-pin Main Power connector
    2 x 8-pin +12V CPU Power connectors
    Storage Related
    4 x M.2 slots (Key M)
    2 x SATA 6Gb/s ports
    USB
    1 x USB 10Gbps connector (supports USB Type-C^®)
    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (F_AUDIO)
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1 pin)
    1 x 10-1 pin System Panel header
    Special Features

    ASUS 5X PROTECTION III
    - DIGI+ VRM (- Digital power design with DrMOS)
    - LANGuard
    - Overvoltage protection
    - SafeSlot
    - Stainless-steel back I/O
    ASUS Q-Design
    - M.2 Q-Latch
    - PCIe Slot Q-Release
    - Q-Antenna
    - Q-Dashboard
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - Flexible M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack^™ button
    - BIOS FlashBack^™ LED
    - ProCool
    - Pre-mounted I/O shield
    - SafeSlot
    Aura Sync
    - Addressable Gen 2 headers
