| - Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
- L3 cache varies with CPU
(Please refer "CPU Support List" for more information.) |
| Chipset | - Intel® H110 Express Chipset
|
| Memory | - 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
* Due to a Windows 32-bit operating system limitation, when more than 4
GB of physical memory is installed, the actual memory size displayed
will be less than the size of the physical memory installed. - Dual channel memory architecture
- Support for DDR4 2133 MHz memory modules
- Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.) |
| Onboard Graphics | - Integrated Graphics Processor - Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
* Support for HDMI 1.4 version. - Maximum shared memory of 1024 MB
|
| Audio | - Realtek® ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you have to use an HD front panel
audio module and enable the multi-channel audio feature through the
audio driver. - Support for S/PDIF Out
|
| LAN | - Realtek® GbE LAN chip (10/100/1000 Mbit)
|
| Expansion Slots | - 1 x PCI Express x16 slot, running at x16
(The PCI Express x16 slot conform to PCI Express 3.0 standard.) - 2 x PCI Express x1 slots
(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
|
| Storage Interface | Chipset:
- 4 x SATA 6Gb/s connectors
|
| USB | Chipset:
- 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
|
| Internal I/O Connectors | - 1 x 24-pin ATX main power connector
- 1 x 4-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 1 x CPU fan header
- 1 x system fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x USB 3.0/2.0 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header
- 1 x Clear CMOS jumper
|

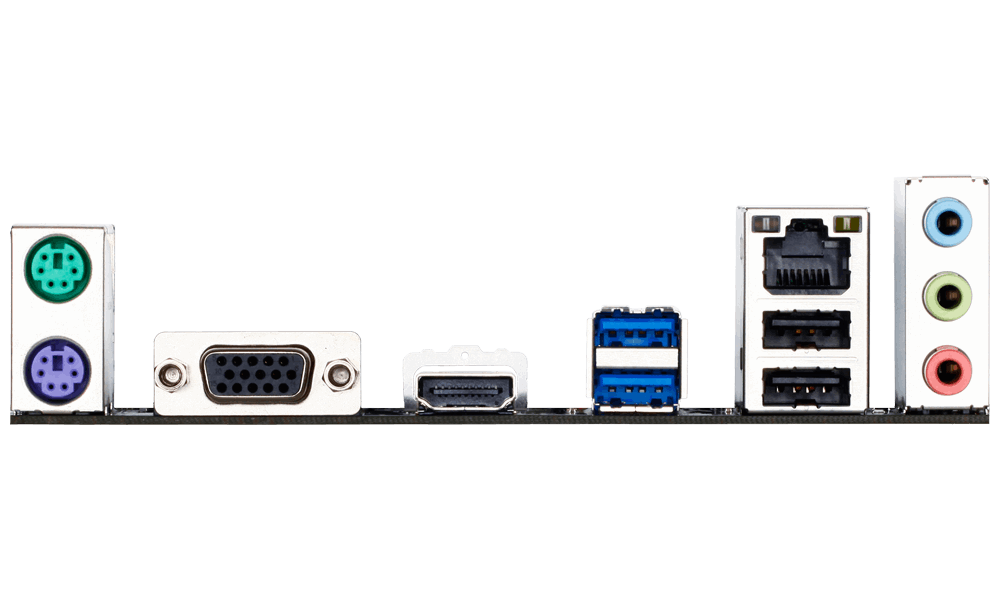

| Back Panel Connectors | - 1 x PS/2 mouse port
- 1 x PS/2 Keyboard port
- 1 x D-Sub port
- 1 x HDMI port
- 2 x USB 3.0/2.0 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 3 x audio jacks (Line In, Line Out, Mic In)
|
| I/O Controller | - iTE® I/O Controller Chip
|
| H/W Monitoring | - System voltage detection
- CPU/System temperature detection
- CPU/System fan speed detection
- CPU/System overheating warning
- CPU/System fan fail warning
- CPU/System fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
|
| BIOS | - 1 x 64 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
|
| Unique Features | - Support for APP Center
* Available applications in APP Center may differ by motherboard model.
Supported functions of each application may also differ depending on
motherboard specifications.
3D OSD
@BIOS
AutoGreen
Cloud Station
EasyTune
Fast Boot
Smart TimeLock
Smart Keyboard
Smart Backup
System Information Viewer
USB Blocker
- Support for Q-Flash
- Support for Smart Switch
- Support for Xpress Install
|
| Bundle Software | - Norton® Internet Security (OEM version)
- cFosSpeed
|
| Operating System | - Support for Windows 10/8.1 64-bit
- Support for Windows 7 32-bit/64-bit
* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
|
| Form Factor | - Micro ATX Form Factor; 22.6cm x 17.4cm
|
| Remark | - Due
to different Linux support condition provided by chipset vendors,
please download Linux driver from chipset vendors' website or 3rd party
website.
- Most hardware/software vendors may no longer offer
drivers to support Win9X/ME/2000/XP. If drivers are available from the
vendors, we will update them on the GIGABYTE website.
|
