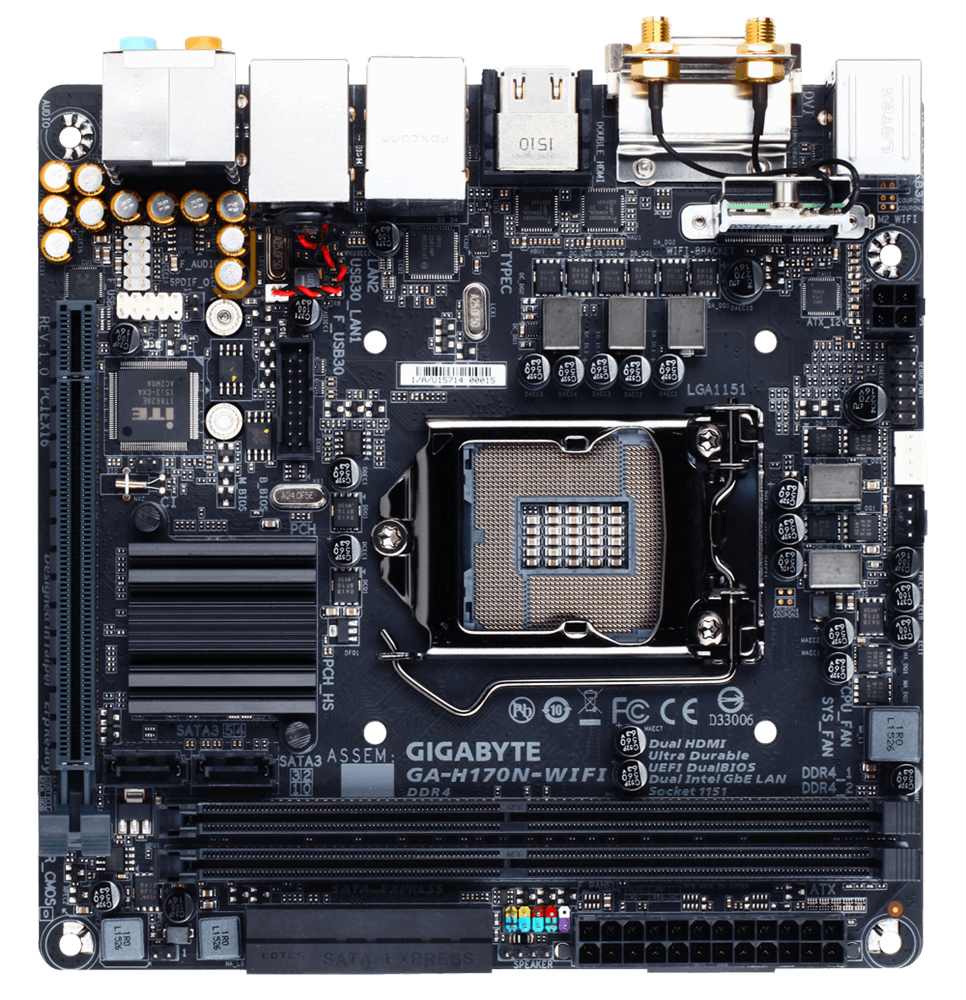

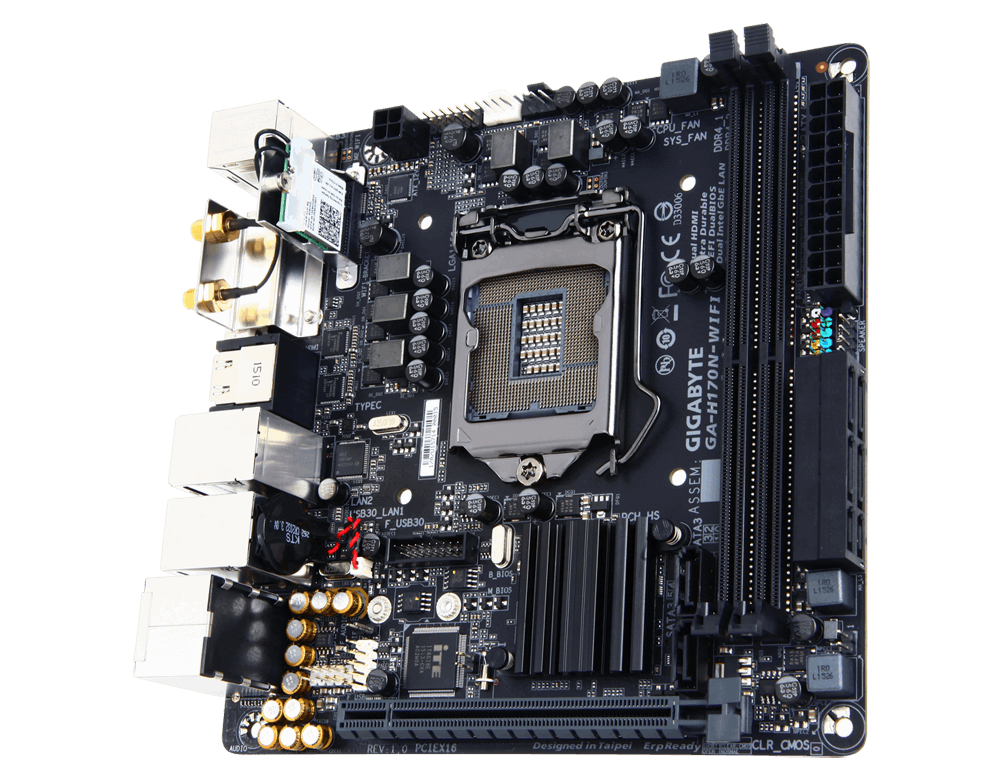

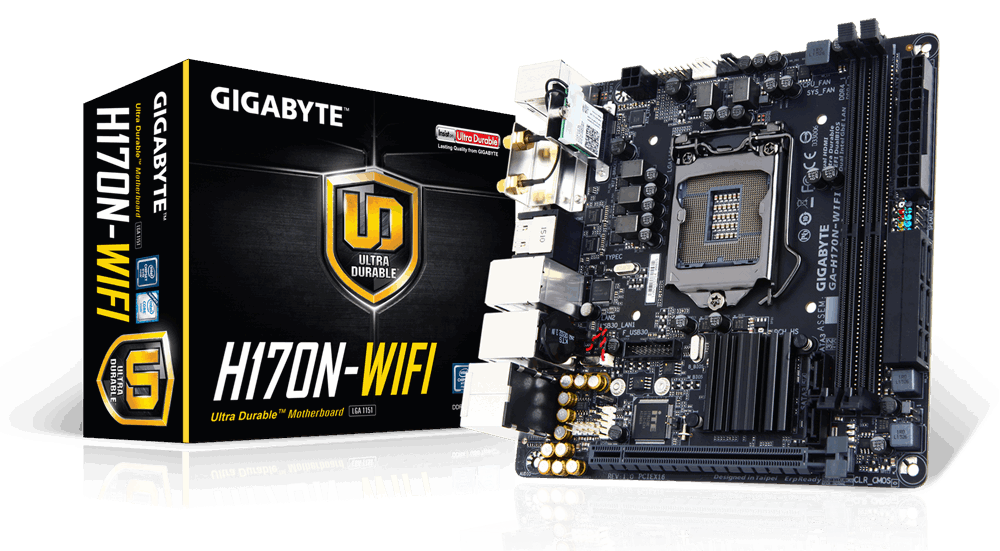

Motherboard Gigabyte H170N-WIFI

CARACTERISTICAS:

Procesador

1.         Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel® Celeron® processors in the LGA1151 package

* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.

2.         L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

•          Chipset

1.         Intel® H170 Express Chipset

Memoria

1.         2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.

2.         Dual channel memory architecture

3.         Support for DDR4 2133 MHz memory modules

4.         Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

5.         Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules

(Please refer "Memory Support List" for more information.)

Gráficos Integrados

Integrated Graphics Processor-Intel® HD Graphics support

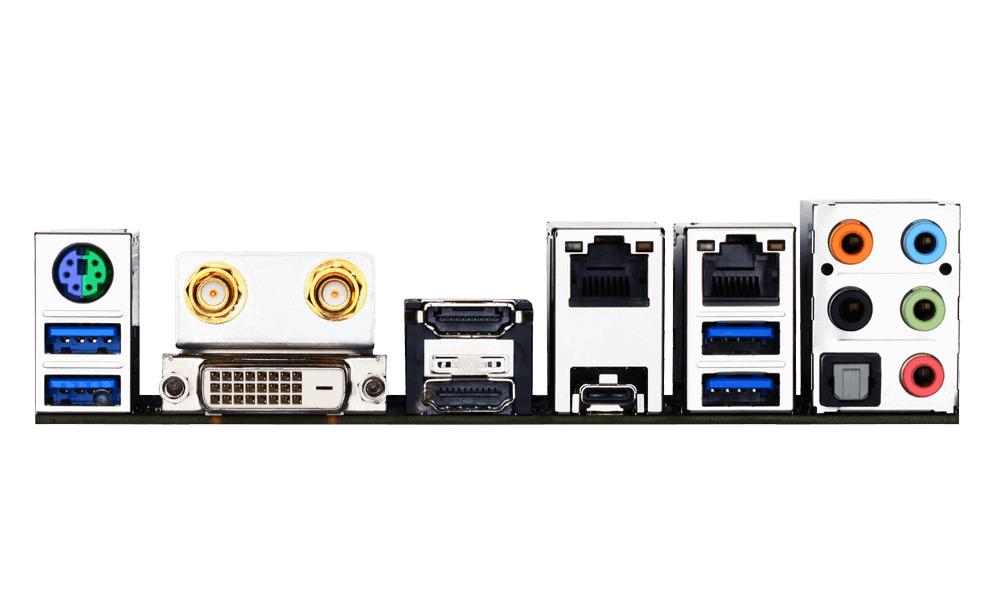

1.         1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

2.         2 x HDMI ports, supporting a maximum resolution of 4096x2160@24 Hz

* Support for HDMI 1.4 version.

3.         Support for up to 3 displays at the same time

4.         Maximum shared memory of 1024 MB

Audio

* Realtek® ALC1150 codec / High Definition Audio / 2/4/5.1/7.1-channel / Support for S/PDIF Out

LAN

1.         2 x Intel® GbE LAN chips (10/100/1000 Mbit)

Wireless Communication module

1.         Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

2.         BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

3.         Support for 11ac wireless standard and up to 867 Mbps data rate
